19-w-4 Platform Walkway Galvanized Welded steel grating Structural steel grating steel grating Supplier

Contact person : Lisa

Phone :+86 13256136192

WeChat :+86 13256136192

Whatsapp : +86 13256136192

Email : lisa@juyihengsteel.com

Product Description

Galvanized Steel Grating as Platform Grating for Airports

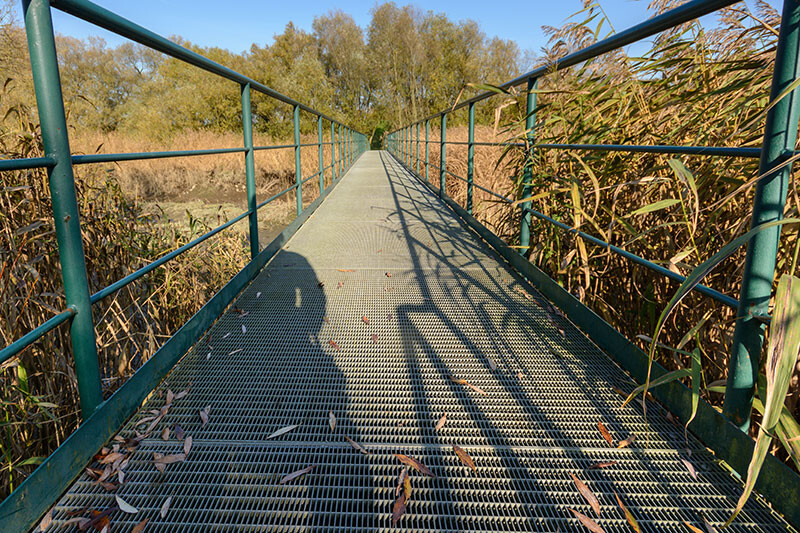

Welded Steel Grating for Stair Treads, Walk Way, Platform and Various Floor
Riveted Grating Has High Load Capacity, Anti-slip Surface

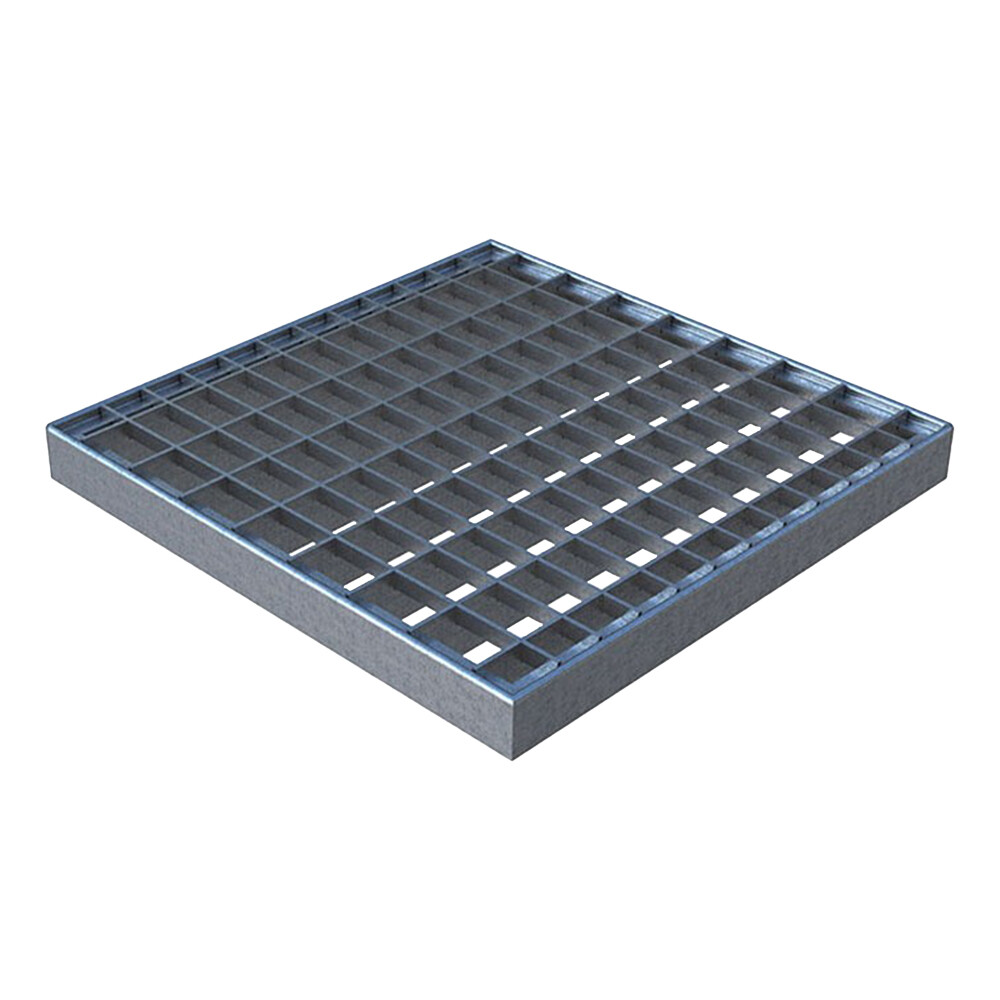

Standard Steel Grating – Custom Sizes & Loads
Irregular Steel Grating with Special Shapes and for Special Use
Plug-Type Flat Steel Grating Sturdy and Beautiful
Stainless Steel Grating – 304 & 316 materials for Corrosive Projects
Press-Locked Steel Grating – Common, Integral, Louver, Heavy Duty
I Bar Steel Grating –Light Weight but High Strength
Heavy Duty Steel Grating Ensure Safety and Durable Life
Compound Steel Grating with Hot-Dip Galvanized

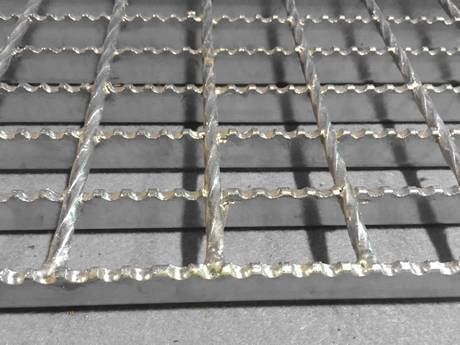

Serrated Welded Grating with High Bearing Capacity and High Security

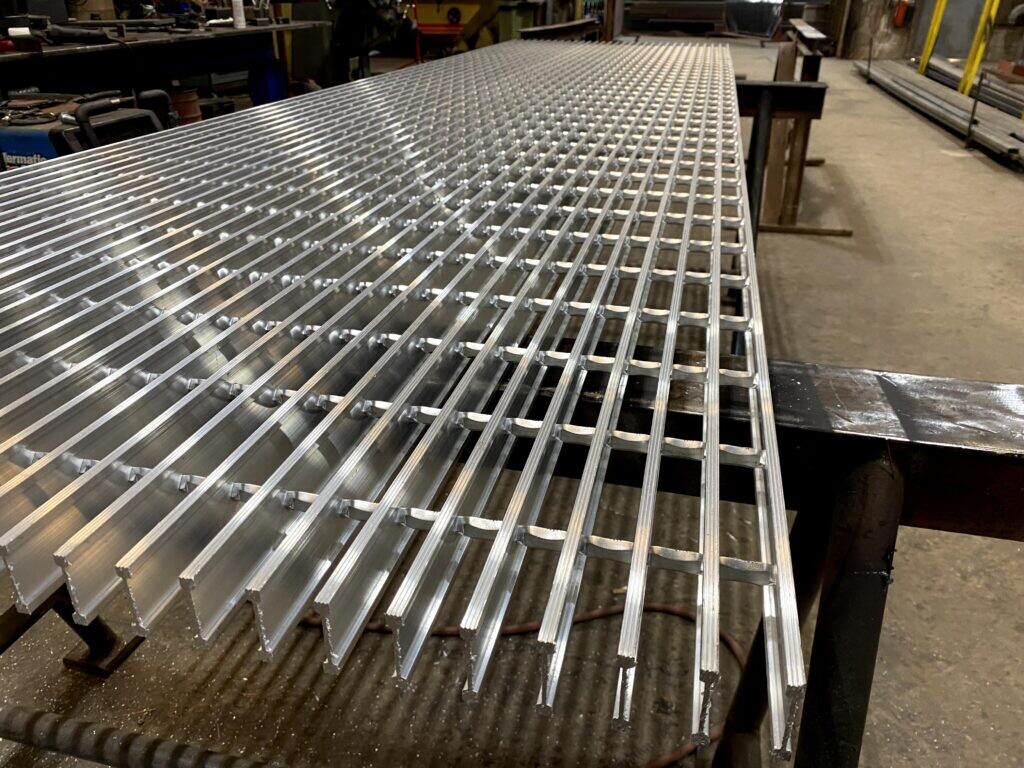

Aluminum Grating – Your Ideal Choice for Indoor & Outdoor Decorations
Louver Steel Grating with High Strength, Wear Resistance and Anti-slip
Dense Welded Steel Grating, Flat Steel Space 12 mm or 20 mm

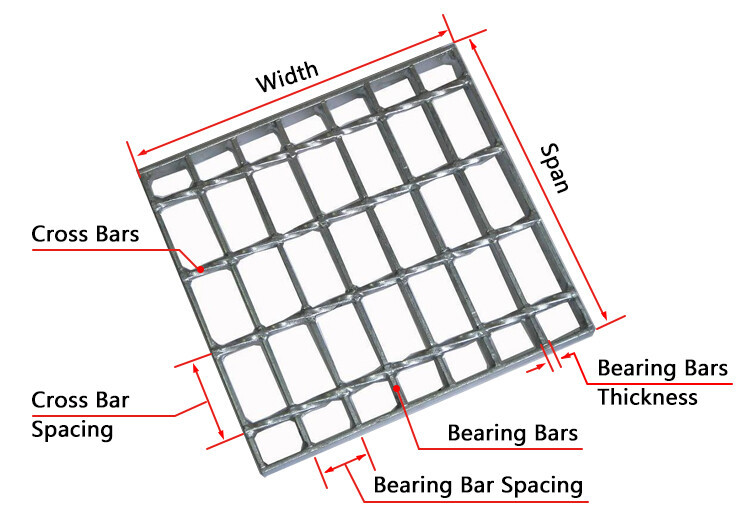

No.	Item	Description
1	Bearing bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10,100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc.
2	Bearing bar pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Cross bar pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc
4	Material Grate	ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
5	Surface treatment	Black, self colour, hot dip galvanized, painted, spray coating
6	Grating Type	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7	Standard	China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan :JIS
8	Application	-Rotation ways, channels, and platforms for pump rooms and engine rooms in various ships; -Flooring in various bridges such as railway bridge sidewalks, over-bridges across the street; -Platforms for oil extraction sites, car washing sites and air towers; -Fencings for car-parks, buildings and roads; drainage trench covers and drainage pit covers for high strength .
